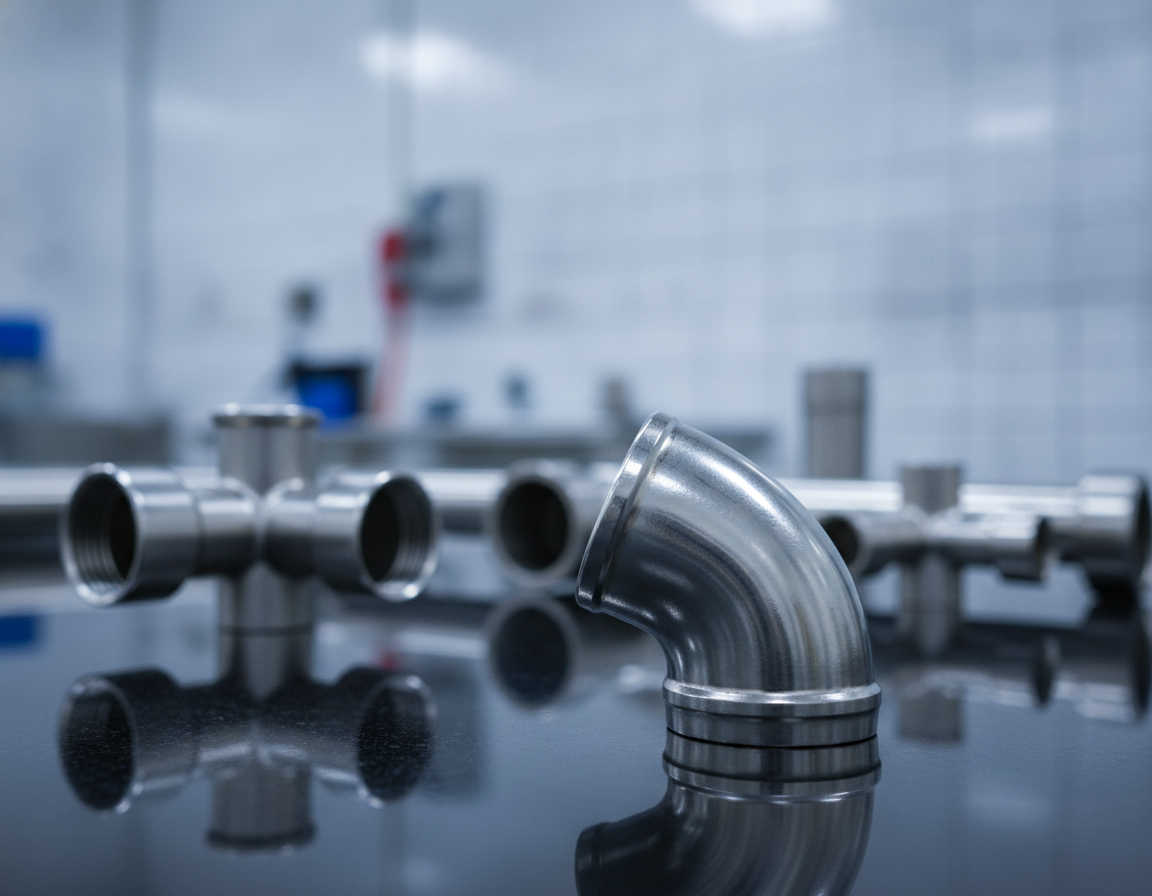

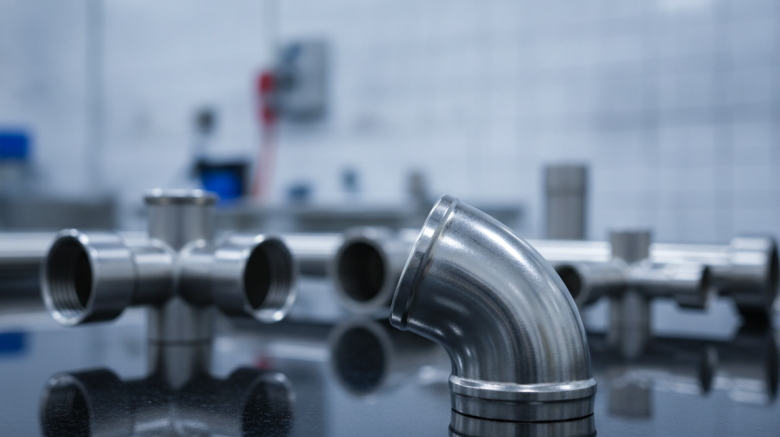

Stainless steel sanitary pipe fittings are vital in maintaining clean systems across various industries. Components such as ferrules, clamps, sanitary valves, and fittings are designed to maintain clean fluid paths. They reduce contamination risk while making cleaning, inspection, and maintenance easier.
Sanitary Connections
Selecting the right Hygienic Fittings and Ss Sanitary Fittings shapes product safety, uptime, and regulatory compliance. The material grade, surface finish, and compatibility of connections are important factors. These details determine how easily the system can be cleaned, validated, and maintained.
Operations teams benefit from reliable suppliers and detailed catalogs when choosing the correct parts. Brands like CSI and distributors such as Installation Parts Supply supply essential information. Their catalog listings, lead times, and customer reviews can inform purchasing decisions for Sanitary Valves And Fittings.
Important Takeaways
- Stainless Steel Sanitary Pipe Fittings support contamination control in clean process systems.
- Material grade and surface finish influence cleanability and corrosion resistance.
- Hygienic Fittings compatibility lowers downtime during maintenance and upgrades.
- Supplier catalogs and reviews from CSI and Installation Parts Supply aid reliable sourcing.
- Proper selection of Sanitary Valves And Fittings supports regulatory compliance and product quality.
Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems: Overview
Sanitary systems require components designed for safety and efficiency. A sanitary fitting must have smooth surfaces, tight seals, and easy cleaning access. These features are essential for preventing contamination and supporting clean-in-place and sterilize-in-place routines.
Sanitary Fittings Definition And Purpose
Sanitary fittings, often called hygienic fittings, are designed to create crevice-free connections. This limits bacterial growth, maintaining product purity during transfer and processing. Their design supports quick cleaning and minimizes cross-contamination risks.
Key Industries Using Hygienic Fittings
Food processors use hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use them to preserve flavor and shelf life. Pharmaceutical plants select fittings that meet strict regulatory requirements.
Biotech facilities need reliable sanitary connections for fermentation, cell culture, and bioprocessing. These industries prioritize traceability, repeatable cleaning, and compatible materials.
Why Stainless Steel Is Preferred For Sanitary Applications
Stainless steel is widely chosen because it offers corrosion resistance, mechanical strength, and easy cleanability. Grades like 304 and 316L resist chemicals and high temperatures. They also allow surface finishes such as electropolishing and low Ra values.
Stainless components help reduce bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces speed up assembly, inspection, and maintenance in hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
In modern food, beverage, and pharmaceutical systems, stainless steel sanitary pipe fittings are essential. Choosing the right material, component type, and surface finish minimizes contamination risk and makes cleaning easier. This section reviews common stainless grades, component families, and surface finish options for hygienic performance.
Common Materials And Grades Used
Type 304 stainless steel is recognized for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is often used for tanks, supports, and areas with lower risk of product contact.
Type 316L provides higher resistance to chloride pitting and crevice corrosion. Pharmaceutical companies frequently choose 316L for wetted parts due to its low carbon content, which prevents sensitization during welding.
Matching grades across components supports corrosion resistance and prevents galvanic issues when parts are joined. Specifying 304 or 316L early in design helps control procurement of SS Sanitary Fittings and related parts.
Common Sanitary Fitting Types And Their Roles
Ferrules are the primary connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings help create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible transfer lines and permanent piping. Sanitary Valves And Fittings control flow while maintaining cleanable contours. Designing a system with compatible SS Sanitary Fittings minimizes downtime and leak risks.
Why Surface Finish Matters For Cleanability
Surface roughness directly influences how residues cling to metal surfaces. A 32RA internal finish is a common spec that combines cost and cleanability for most food and beverage applications.
Electropolishing further refines the metal and enhances passivity. This treatment reduces microbial harborage and boosts corrosion resistance in aggressive environments.
Specifying consistent finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes simpler.
| Part | Usual Material | Typical Finish | Primary Use |
|---|---|---|---|
| Ferrules for welded assemblies | 304 stainless or 316L stainless | 32RA ID and OD finish | Welded transitions, pipe ends |
| Two-piece Tri-Clamp clamps | 316L preferred | 32RA finish or electropolished surface | Quick-release hygienic joints |
| Sanitary couplings and weld fittings | 304 and 316L stainless options | 32RA, electropolished optional | Permanent joins, elbows, tees |
| Sanitary Hose Fittings | 316L common | Electropolished product-contact surfaces | Flexible connections, transfer lines |
| Sanitary valves and process fittings | 316L for wetted parts | Smooth polished flow paths | Hygienic flow control |
Triclover Fitting Options And Tri-Clamp Catalog Guidance
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. DIN 32676 and DIN 11864-3A dictate ferrule face geometry and clamp interfaces. These standards help sanitary lines remain leak-resistant, cleanable, and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, compare size ranges, material specifications, and surface finishes. Catalogs often list two-piece clamps from 0.25″ to 4″, including single-pin options and matching gaskets. Ferrules are usually shown with length, material, and finish details, with 304 and 316L 32RA options common for improved cleanability.
Important catalog items include clamps, ferrules, and gasket sets sized by inches or DN. Prices for small two-piece clamps start under ten dollars, while larger clamps are in the low double digits. Each Triclover Fitting listing should show OAL, ID/OD finish, gasket compatibility, and material grade. This ensures the correct part is chosen at the time of order.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps include a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, select high-pressure clamps based on rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material impacts both longevity and cleaning performance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Ensure the Tri-Clamp Fittings Catalog lists both ferrule metallurgy and clamp construction. This helps with the selection of Tri Clover Pipe Fittings based on application needs and service conditions.
Spec sheets should list clamp size charts, ferrule dimensions, and part numbers to streamline procurement. A well-organized catalog makes Triclover Fittings replacement faster and helps minimize downtime. Choose suppliers that publish detailed specifications for each Tri Clover Fitting so interchangeability across brands can be confirmed.
Sanitary Connections And Compatibility With CSI Sanitary Fittings
Sanitary connections are essential for joining pipes, valves, pumps, and equipment in clean systems. The right joint type is critical for maintaining hygiene and efficiency. This section will cover common connection styles, brand interchangeability, and customer feedback on supplier reliability.
There are several connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own strengths and limitations regarding assembly speed, cleanability, and leak risk.
Clamp connections are preferred for their quick assembly and ease of disassembly for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are acceptable for low-risk applications where product contact is not a concern. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility matters when components from multiple suppliers are mixed. CSI Sanitary Fittings and Csi Fittings follow common standards such as Tri-Clamp and DIN, which generally supports interchangeability with other manufacturers. Steel & O’Brien publishes spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To confirm compatibility, match the nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can cause corrosion, leakage, or product-residue traps.
Customer reviews can provide practical insight into supplier reliability and fulfillment speed. Reviews for CSI mention consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear specification sheets help reduce downtime and avoid costly returns when buying Sanitary Connections, CSI Sanitary Fittings, or Steel & O’Brien components.
| Connection Type | Best Use | Cleanability | Compatibility Notes |
|---|---|---|---|
| Clamp Tri-Clamp | Product-contact lines needing frequent disassembly | Easy cleaning when gasket and ferrules match | High if size and sealing face match; CSI fittings usually fit standard systems |
| Welded sanitary connections | Permanent process runs requiring smooth internal bores | Excellent after correct weld finishing and polishing | Standard dimensions support cross-brand ferrule and coupling compatibility |
| Threaded sanitary-style connection | Low-risk applications away from product contact | Moderate because threads may trap residue | Less common in product-contact lines; verify material and surface finish |
| Hose with Ferrule | Flexible runs and transfer lines | Good when ferrule, gasket, and clamp match | Requires matching ferrule profile and Sanitary Coupling for leak-free fit |
Selection Guide For Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Choosing the right sanitary components depends on a few focused steps. This guide helps match size, material, finish, and gasket type to process requirements. Use the checks below to reduce downtime and support hygienic performance.
Begin with size and designation. Confirm DN and TC markings, then verify DN-to-TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is a critical part of sanitary fitting specification. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical or chloride-exposed processes, choose 316L for superior corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials like EPDM, PTFE, or silicone to temperature, chemical exposure, and product contact requirements. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Review process pressure and clamp type. Standard sanitary clamps handle many everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings offer conductivity and antimicrobial benefits in select systems. Validate compatibility with cleaning agents, product chemistry, and dissimilar metal corrosion risks when pairing copper with stainless lines.
Final checks reduce costs. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, and clamp pressure to streamline spare parts ordering and maintenance.
Installation, Maintenance, And Best Practices For Sanitary Coupling And Sanitary Weld Fittings
Keeping sanitary connections clean and reliable is critical in hygienic systems. Follow defined assembly steps for tri-clamp assemblies and welded joints to reduce leaks and contamination risk. Detailed records of materials, finishes, torque values, and maintenance are important for traceability and audits.
Best-practice assembly steps
Start by cleaning ferrule faces thoroughly and checking gaskets for cuts, deformation, or other defects. Place the gasket between the ferrule faces, ensuring the sealing surfaces are aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Sanitary Weld Fittings best practices
For weld joints, prepare tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Routine Sanitary Maintenance
Implement CIP and SIP cycles as required by the process. Inspect ferrule faces, clamps, and gaskets after thermal cycles, production runs, and scheduled cleaning. Replace gaskets when they show hardening, extrusion, cuts, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Troubleshooting frequent sanitary fitting issues
When leaks appear, first check clamp seating, gasket condition, and ferrule alignment. Misaligned clamps can cause uneven compression and create leaks. To correct this, loosen the assembly, realign it, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Addressing surface damage
Surface damage such as scratches, pits, or crevice corrosion can trap microorganisms and residues. Minor scratches can be polished out and then electropolished to restore the Ra levels. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Recordkeeping and documentation
Maintain detailed records of material grades, surface finishes, gasket materials, clamp models, torque values, and service dates. Keep calibration records for torque tools, welding equipment, and inspection instruments. Accurate records support compliance, audits, validation, and faster troubleshooting.
| Task | Timing | Key Action | Important Notes |
|---|---|---|---|
| Clamp torque verification | After assembly, then monthly | Verify with a calibrated torque wrench | Follow manufacturer torque tables by Sanitary Coupling size |
| Gasket inspection and replacement | Every 3 to 12 months or when failure occurs | Check for cuts, hardening, swelling, or extrusion | Replace only with compatible gasket material |
| Surface finish inspection | Every quarter or after welding | Check Ra values and look for surface defects | Electropolish if Ra exceeds spec for hygienic areas |
| Sanitary weld inspection | After installation and annually | Inspect weld shape, smoothness, and defects | Repair and re-polish Sanitary Weld Fittings as needed |
| CIP and SIP validation | According to each cleaning or sterilization cycle | Track time, temperature, chemistry, and concentration | Document results for regulatory traceability |
Where To Buy: Sanitary Fittings Catalogs, CSI Fittings, And Installation Parts Supply
Starting with a detailed catalogue review is key. Look for a Sanitary Fittings Catalog that includes material grade, finish, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Before ordering, confirm item codes, stock status, lead times, and compatibility to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, and dimensional specs. Check if ferrules and fittings have surface finishes like 32RA or electropolished. A detailed catalog makes gasket and clamp matching easier during assembly and maintenance.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms for precision components to protect tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. Prices reflect typical catalog entries and provide realistic budgets for procurement.
| Catalog Item | Nominal Size | Grade | Surface Finish | Catalog Price USD |
|---|---|---|---|---|
| Two-piece single-pin sanitary clamp | Quarter-inch to three-quarter-inch | 304 stainless | Standard catalog finish | 3.91 USD |
| Two-piece single-pin clamp | 1 inch | 304 stainless | Standard catalog finish | Approx. $4.91 |
| Two-piece single-pin sanitary clamp | 2 inch | Type 304 stainless steel | Standard catalog finish | Approx. $5.99 |
| Two-piece single-pin sanitary clamp | Two-and-a-half-inch size | 304 | Standard | $6.93 |
| Single-pin two-piece clamp | 3 inch | Type 304 stainless steel | Standard | $7.54 |
| Two-piece single-pin sanitary clamp | 4″ | Type 304 stainless steel | Standard finish | Approx. $9.16 |
| Ferrule TC | 2″ — 1.125″ OAL | 316L stainless | 32RA internal and external finish | 4.24 USD |
| Tri-Clamp ferrule | 2 inch with 1.125 inch OAL | Type 304 stainless steel | 32RA internal and external finish | Approx. $4.06 |
| Ferrule TC | 3″ | Type 316L stainless steel | 32RA internal and external finish | Approx. $6.15 |
| High-pressure double-bolt clamp | 1.5 inch | Type 316 stainless steel | Polished sanitary finish | 12.93 USD |
| Double-bolt high-pressure clamp | 2″ | 316 | Polished sanitary finish | Approx. $14.62 |
| High-pressure sanitary clamp | 3 inch | 316 stainless | Polished | $20.26 |
Installation Parts Supply is a U.S.-based source for sanitary valves, ferrules, and clamps. Use their online listings to confirm availability, surface finishes, material grades, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, prioritize catalogs that show clear specs for 304 versus 316L, specify surface finish, and cite conforming standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Sanitary Pipe Fittings Summary
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in various industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, supports cleanability. This reduces contamination risks significantly. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When selecting fittings, consider the material, finish, and connection type. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. Use high-pressure clamps where process pressure or safety margins require them. Consistency in gaskets, clamps, and ferrules reduces leaks and simplifies maintenance. Proper installation and regular cleaning extend fitting life and support compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This allows for balanced cost and reliability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and reliable sources help minimize downtime. That helps protect product quality in hygienic processing environments.
